Thompson SAE Standard R3 Reinforced Hydraulic Hose

Name: Thompson SAE Standard R3 Reinforced Hydraulic Hose
Brand: thompson
Price: 1 USD

Thompson SAE Standard R3 Reinforced Hydraulic Hose Manufactures

Brand Name : thompson

Place of Origin : China

MOQ : 1000Meter

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 200,000 meter per month

Delivery Time : 15-20 working days

Packaging Details : wrapped with yellow/white woven belt or plastic firm

Contact Now

SAE Standard Two High Tensile Textile Wire Braided R3 Hydraulic Hose

Fibre Braided Hydraulic Hose: SAE J517 TYPE 100 R3 STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : two high tensile steel fibre braid (2T/B)
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃

DN	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
5	3/16	4.8	12.7	10.5	1520	42.0	6500	75	0.16	50/100
6	1/4	6.4	14.3	8.7	1350	34.8	5300	75	0.19	50/100
8	5/16	7.9	17.5	8.4	1300	33.6	5200	100	0.26	50/100
10	3/8	9.5	19	7.8	1200	31.2	4840	100	0.28	50/100
13	1/2	12.7	23.8	7.0	1080	28.0	4340	125	0.4	50/100
16	5/8	15.9	27	6.1	945	24.4	3780	140	0.55	50/100
19	3/4	19.0	31.8	5.2	800	20.8	3220	150	0.69	50/100
25	1	25.4	38	3.9	600	15.6	2420	205	0.82	50
32	1 1/4	31.8	44.4	2.6	40	10.4	1610	250	1.00	20 to 40

Product Tags:

R3 Reinforced Hydraulic Hose

SAE Standard Reinforced Hydraulic Hose

R3 hydraulic pressure line

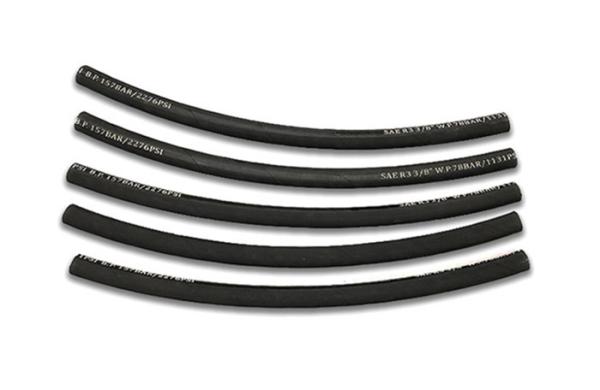

Thompson SAE Standard R3 Reinforced Hydraulic Hose Images
